WHY CHOOSE A HERZOG SHUT-OFF NOZZLE?
Within the injection molding industry today, it has become gradually more important that only components of the highest quality can ensure a reliable process. The continual advancement of material properties such as; developments in flame retardants and weight saving agents are placing ever increasing demands on mechanical components.
You need to know you can count on a trustworthy partner to help your process run smoothly.
WHY CHOOSE A HERZOG SHUT-OFF NOZZLE?
Within the injection molding industry today, it has become gradually more important that only components of the highest quality can ensure a reliable process. The continual advancement of material properties such as; developments in flame retardants and weight saving agents are placing ever increasing demands on mechanical components.
You need to know you can count on a trustworthy partner to help your process run smoothly.
What are the Herzog advantages?
- Over 40 years’ experience designing and manufacturing customer specific solutions
- Consistently the brand which OEMs and processors choose for reliability, quality and performance
- The largest range of powered / controllable and spring operated shut-off nozzles for all injection molding applications
- The only company which focuses solely on shut-off nozzle development
- Shut-off nozzle solutions for special processes such as melt pre-compression, gas injection, physical foaming, liquid silicone rubber, etc.
- Focus on close customer proximity with subsidiary sales & service centers in Switzerland, in the USA and in China as well as representation in over 20 countries worldwide
- Nozzle design, engineering and manufacture as our focus
- Product development and design to meet current demand profiles
- Construction and material selection designed for optimum processing parameters
- Short reaction times (delivery from stock in most cases)
- Servicing / cleaning service available
REASONS FOR USING A SHUT-OFF NOZZLE
Methods
- Dosing with retracted injection units (sprue break)
- High-speed unit, very short cycle times
- Multi-component injection
- Vertical injection process
- Mold decompression
- Special applications (GIT, MuCell and others)
- Filter, thermal conduction and mixer applications
Industries / Applications
- Packaging industry
- Automobile industry
- Medical technology
- Electrical engineering
- Engineering plastics
- Sports equipment, outdoor
Productivity factors
- Material saving by eliminating drooling, stringing, leakage
- Reduction in waste
- Reduction in cycle times
- Process, environmental and safety aspects
- Homogenization improvement with increased back pressure and mixers
MACHINE NOZZLE NEEDLE SHUT-OFF
TYPE A(S)
The original needle shut-off nozzle from Herzog which has over the years enabled thousands of processors increase productivity. Strong, reliable and above all economical; it can be adapted to any machine type with the simplest of installations.
Productivity factors
- Shorter cycle times → increased productivity
- Clean shut-off of the melt stream
- Quick installation
- Filter option
TYPE HP

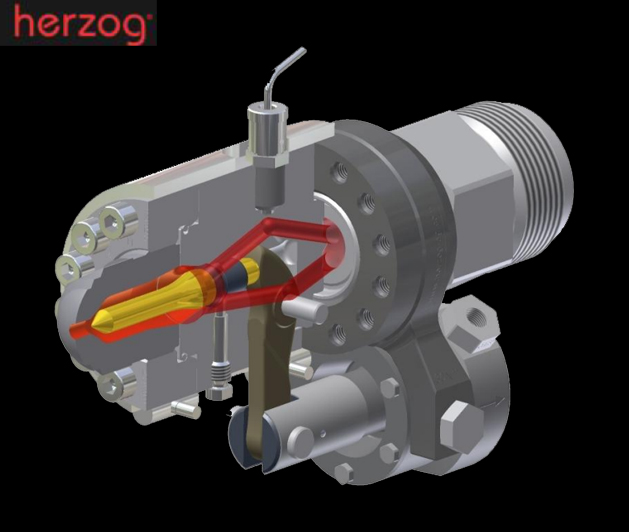

The pneumatically or hydraulically controlled nozzle type HP (High Performance) has a needle shut-off which stops the melt stream directly at the mold interface. The HP nozzle is adaptable with several different technologies such as; MuCell® and other physical foaming procedures or melt pre-compression.
Productivity factors
- Shorter cycle times → increased productivity
- Controlled shut-off at nozzle tip / mold interface
- Usability with increased back pressure → improved homogenisation
- Process reliability with sensors
- Filter & mixer options
- Retrofit capability
MACHINE NOZZLE BOLT SHUT-OFF
TYPE BHP
The pneumatically or hydraulically actuated machine bolt shut-off nozzle type BHP, is used principally in processing of shear sensitive materials and also in combination with hot runner systems. The straight and large melt-flow channel provides optimal rheological conditions.
Productivity factors
- Shorter cycle times → increased productivity
- Controlled shut-off of the melt stream
- Usability with increased back pressure → improved homogenisation
- Improved process reliability
- Retrofit capability
MACHINE NOZZLE NEEDLE SHUT-OFF
TYPE E(ELASTOMERS)
The pneumatically controlled nozzle type NE (Elastomer) has a needle shut-off which stops the melt stream directly at the mold interface. The NE nozzle is specifically designed for use in elastomer processing. Rubber, liquid silicone rubber and other elastomers can be processed without fear of vulcanisation due to the nozzle’s integrated cooling system which uniquely regulates temperature through the entire nozzle.
Productivity factors
- Shorter cycle times → increased productivity
- Controlled shut-off at nozzle tip / mold interface
- Simple installation
- Fast shut-off reaction
- Rust-free
- Retrofit capability
ADDITIONAL COMPONENTS
In addition to the needle and bolt shut-off nozzle range, we design and manufacture components which help optimize the injection molding process. From process control sensors to systems for the water and gas injection technologies, herzog systems ag provides a broad spectrum of solutions, tailor made for your injection molding needs.
Additional components include
- Filter systems
- Mixing units & nozzles
- Rotary valve shut-off nozzles
- Mold injectors for Gas Assisted Injection Molding
- Gas injection nozzles
- Injection valves
- Non-return valves
